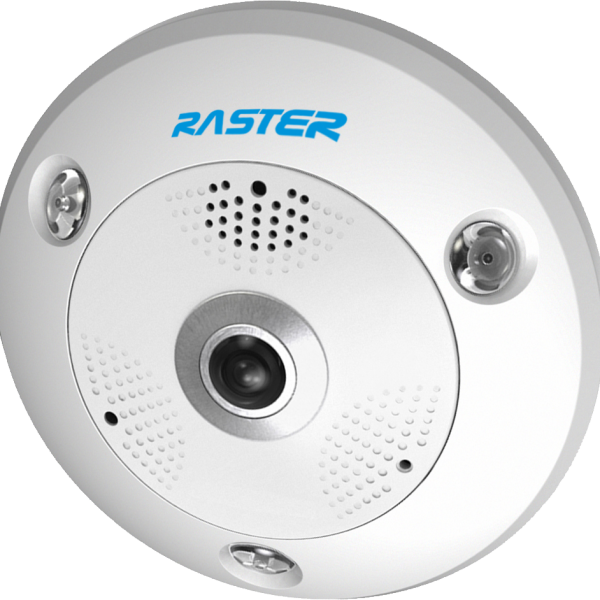

RS-IP4600FE

6MP IR NETWORK FISHEYE CAMERA
1/1.8” 6MP progressive scan CMOS
Up to 3072*2048 resolution
1.27 mm lens, 0 lux IR on
Max IR distance: 15 meters
H.264, MPEG4, MJPEG video compression
D&N, 3DDNR, DWDR, multiple viewing, virtual PTZ, micro SD
PoE, DC12V, IP66, IK10
Onvif support

Description

Model

Parameter

RS-IP4600FE
6 MP Fisheye Network Camera
Camera
Image Sensor 1/1.8” Progressive Scan CMOS
Min. Illumination 0.05lux @ (F1.2, AGC ON)

0.3lux @ (F2.8, AGC ON)

0 lux with IR

Shutter Speed 1/25 s to 1/100,000 s
Slow Shutter Support
Lens 1.27mm@F2.8, angle of view: 360°
Lens Mount M12
Features D&N (ICR), 3DDNR, DWDR,BLC, multiple viewing, virtual PTZ
Compression Standard
Video Compression H.264/MJPEG
Video Bit Rate 32 Kbps – 16 Mbps
Max. Resolution 3072 × 2048
Frame Rate High-frame mode:

50Hz: 1 × fisheye (3072 × 2048/2048*2048, 25fps) or 4 × PTZ (1024 × 768, 25fps)

60Hz: 1 × fisheye (3072 × 2048, 25fps/2048*2048, 30fps) or 4 × PTZ (1024 × 768, 30fps)

Multi-channel mode:

50Hz: 1 × fisheye (1280 × 1280, 12.5fps), 1 × panoramic (2048 × 1536, 12.5fps), 3 × PTZ (1024 × 768, 12.5fps)

60Hz: 1 × fisheye (1280 × 1280, 15fps), 1 × panoramic (2048 × 1536, 15fps),  3 × PTZ (1024 × 768, 15fps)

Image Setting Saturation, Brightness, Contrast adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS
Alarm Trigger Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,

PPPOE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security User Authentication, Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI
Interface
Communication Interface 1 RJ45 10M/100M/1000M Ethernet interface, 1 RS485 interface
On-board storage Built-in Micro SD/SDXC slot, up to 64 GB
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F)

Humidity 95% or less (non-condensing)

Power Supply 12 VDC ± 10% / POE (802.3af)
Power Consumption Max. 11W
IR Range 15 meters
Dimensions 164×152.8×43.8mm(6.46”x6.02”x1.72”)
Weight 1400g
